Guarantee 1 year 100%
Voltage : 220-240V
Power : 6.6W
Flow rate : 500L per hour
Specifications : 16.8X12X26CM (long and wide high),
The inlet telescopic length between 31----16CM
For the following 200L cylinder cylinder space station does not worry, effort, and.
Job description :
from the protein separator using bubble surface tension adsorption enrichment and separation of organic substances, through the air to remove the wastewater suspended in the gel
, cellulose, protein, bait, feces and other organic matter. This product uses special motor impeller broken bubble, greatly increased the degree of fine bubbles, thereby greatly improving the working efficiency of protein separator.
After protein separation, the water quality is more clear, and the living environment of aquatic organisms is greatly improved by filtering the activated carbon cotton board.
Characteristic :
1 beautiful appearance. Small volume. Easy to operate.
2 protein separation, physical filtering in one.
3 fast decomposition of toxic proteins in water, and other impurities in the water filter, and maintain good water quality.
4 quickly and effectively improve the content of oxygen in the water, to help children living with water.
5 water pump using needle type water leaves, the bubble produced by fine and rich, the separation of protein effect.
6 suitable for sea water.
Operation steps :
1 clean the product with clear water before use, do not use any detergent.
2 hang the product on the edge of the fish tank, adjusting the screw at the bottom to keep the product in balance.
3 remove the cover of the garbage, to the pump head end of the tank body with water, the water level must be above the top of the head of the pump 50mm.
4 will tighten the inlet switch according to "CLOSE" direction, and then connect the power, the pump starts to work, the water level gradually increased until the water pipe of the water pipe filled with water.
5 the intake switch is rotated in the direction of "OPEN". Please note that this process, a little bit of the intake switch, gradually increase the air intake, let the needle brush pump running in a period of time, the entire product to start work.

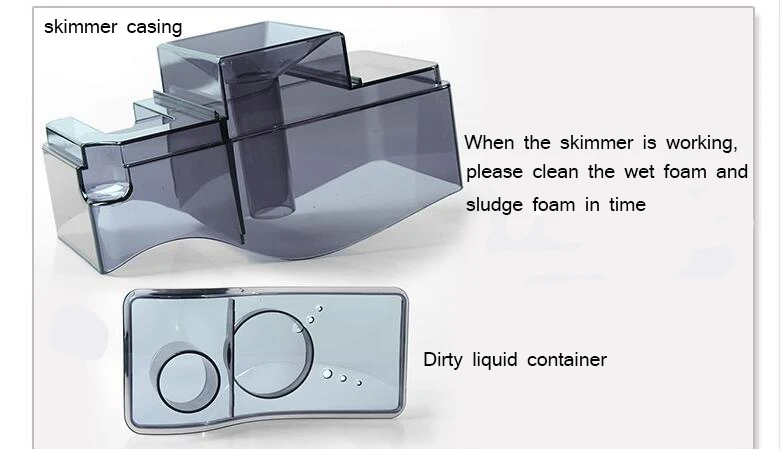

6 let the protein separator run for at least 24 hours. During this period the formation of a wet bubble, should be cleaned up. After the bubble will be reduced and occasionally produce sludge bubble.
Maintenance and simple troubleshooting :
1 regular (20-30 days) to clean water pump rotor and pump rotor holes in the dirt, to prevent the operation of the rotor blocking.
2 regular cleaning filter carbon cotton board (30 days). To prevent dirt blocking the face, reduce the filtering effect.
3 when the amount of gas is found to decrease, please rotate the air intake switch for many times.
Brand : KW Zone
Model : Dophin PS-2012
Max Capacity : 200 liters
Skimmer System : Needle wheel
Place for installation : External use
Bubble Pump Type : Water Pump (included) Dophin500 6.6w
Air intake : 50 liters/hr.
Feed Pump Type : Water Pump (included)
Rate of Flow : 500 liters/hr.
Dia Size : 40 mm.
Hight Size : 260 mm.
Foot Print Size : 130x180 mm.
Cross-sectional Area : 13 cm2
Bubble per Area : 398 BPA
