Titanium Heat Exchangers
Titanium has the super strong corrosion resistant ability. The Titanium heat exchangers use seamless pure titanium tubes as heat
conductor, which can be used for a long time thus are cost-saving for after-sale services.
Product advantages
(1). According to the customer's application field.
(2). The whole titanium tube is processed, which reduces the direct joint of the tube and is more durable.
(3). According to the environment used, use pipes of over standard specifications and thickness requirements to the greatest.
(4). Strong corrosion resistance.
Features:
-Patented, Revolutionary Technology,
-Innovative Design
-Engineered for the HVAC industry
-Structural optimization technology makes fluid flow more efficient and higher heat exchanging performance
High efficency shell and tube water to refrigerant heat exchanger.
Specifications :
1) Small size ,safe and beautiful.
2) Suitable for cooling : seawater ,aquarium chiller, pond and pool.
3) Super strong corrosion resistant ability.
Work Condition :
1) Refrigerant side (In the tube): R22 , R134a , R407c , R410a , R404a , R600a
Material :
1) Heat transfer Tube : Thickness 0.6mm pure titanium tube size o 20 mm
Features :
1) Molded tubes, more safe, small and beautiful.
2) Seamless pure titanium tube has super strong corrosion proof ability and high intensity.
3) The titanium tube was tested by 5.0MPa pressure precise Halogen Leak Detection to make sure the tube is strong and not leakage .
4) It suitable for seawater,fish pool,aquarium chillers,or cooling some corrosive solution.
Model
|
Cooling Capacity
|
Titanium Tube
|
Connection (mm)
|
(Heater)
KW
|
(Chiller)
BTU/h
|
R Ton
|
mm
|
Refrigeration
|
COI-1.0
|
3.5
|
Max 18000
|
1.06
|
150*270*680 mm
|
9.52,12.7
|

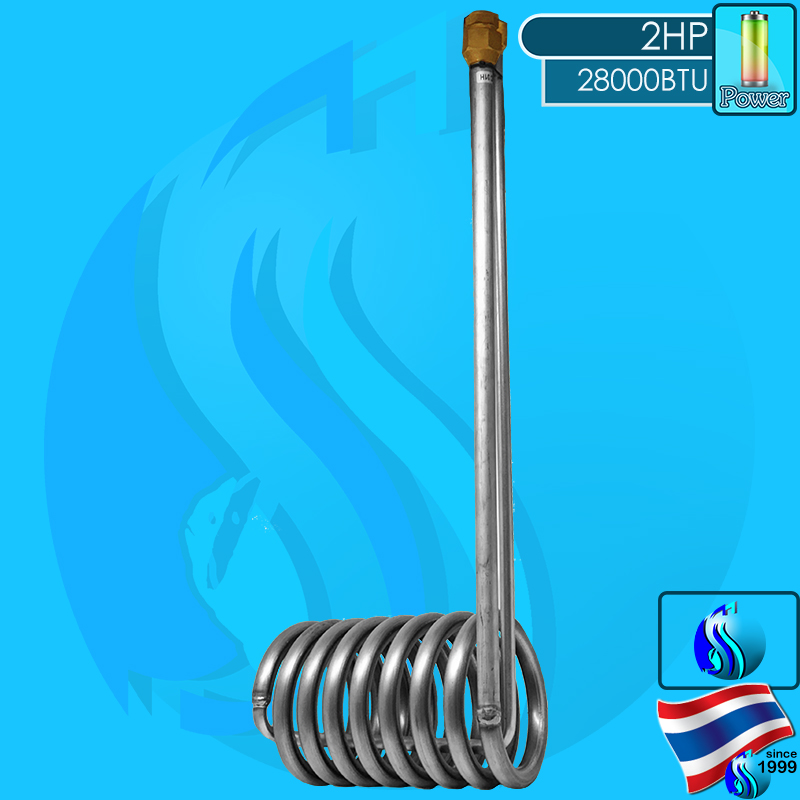

COI-2.0
|
7.0
|
Max 28000
|
2.13
|
mm
|
9.52,12.7
|
COI-3.0
|
10.5
|
Max 36000
|
3.19
|
mm
|
12.7,15.88
|
|
Model
|
COI-1.0 |
COI-2.0 |
COI-3.0 |
|
Maximum (liters)
|
2500
|
4000
|
6000
|
Can be decrease |
SAMPLE Before use be 30 ํC |
Capacity (liters) |
Capacity (liters) |
Capacity (liters) |
(not change) 0 ํC |
30 ํC |
>2500 |
>4000 |
>6000 |
-1 ํC |
29 ํC |
2250
|
3600 |
5400 |
-2 ํC |
28 ํC |
2020
|
3240
|
4860 |
-3 ํC |
27 ํC |
1950 |
2910 |
5850 |
-4 ํC |
26 ํC |
1820
|
2620 |
4370 |
-5 ํC |
25 ํC |
1640 |
2360 |
3930 |
-6 ํC |
24 ํC |
1200 |
2120 |
3600 |
-7 ํC |
23 ํC |
1470 |
1910 |
3540 |
-8 ํC |
22 ํC |
1320
|
1720 |
3180 |
-9 ํC |
21 ํC |
1190
|
1540 |
2860 |
-10 ํC |
20 ํC |
1070
|
1390 |
2580 |
-11 ํC |
19 ํC |
960 |
1250 |
2320 |
-12 ํC |
18 ํC |
870 |
1120 |
2090 |
-13 ํC |
17 ํC |
780 |
1010 |
1880 |
-14 ํC |
16 ํC |
700 |
910 |
1690 |
-15 ํC |
15 ํC |
630 |
820 |
1520 |
-16 ํC |
14 ํC |
570 |
740 |
1370 |
-17 ํC |
13 ํC |
510 |
660 |
1230 |
-18 ํC |
12 ํC |
460 |
600 |
1110 |
-19 ํC |
11 ํC |
410 |
540 |
1000 |
-20 ํC |
10 ํC |
370 |
480 |
900 |
-21 ํC |
9 ํC |
330 |
430 |
810 |
-22 ํC |
8 ํC |
300 |
390 |
720 |
-23 ํC |
7 ํC |
270 |
350 |
650 |
-24 ํC |
6 ํC |
240 |
310 |
590 |
-25 ํC |
5 ํC |
220 |
280 |
530 |
-26 ํC |
4 ํC |
190 |
250 |
470 |
-27 ํC |
3 ํC |
170 |
230 |
430 |
-28 ํC |
2 ํC |
160 |
200 |
380 |
-29 ํC |
1 ํC |
<140 |
<180 |
<340 |
Tube Diameter : o 20 mm
Size : mm
